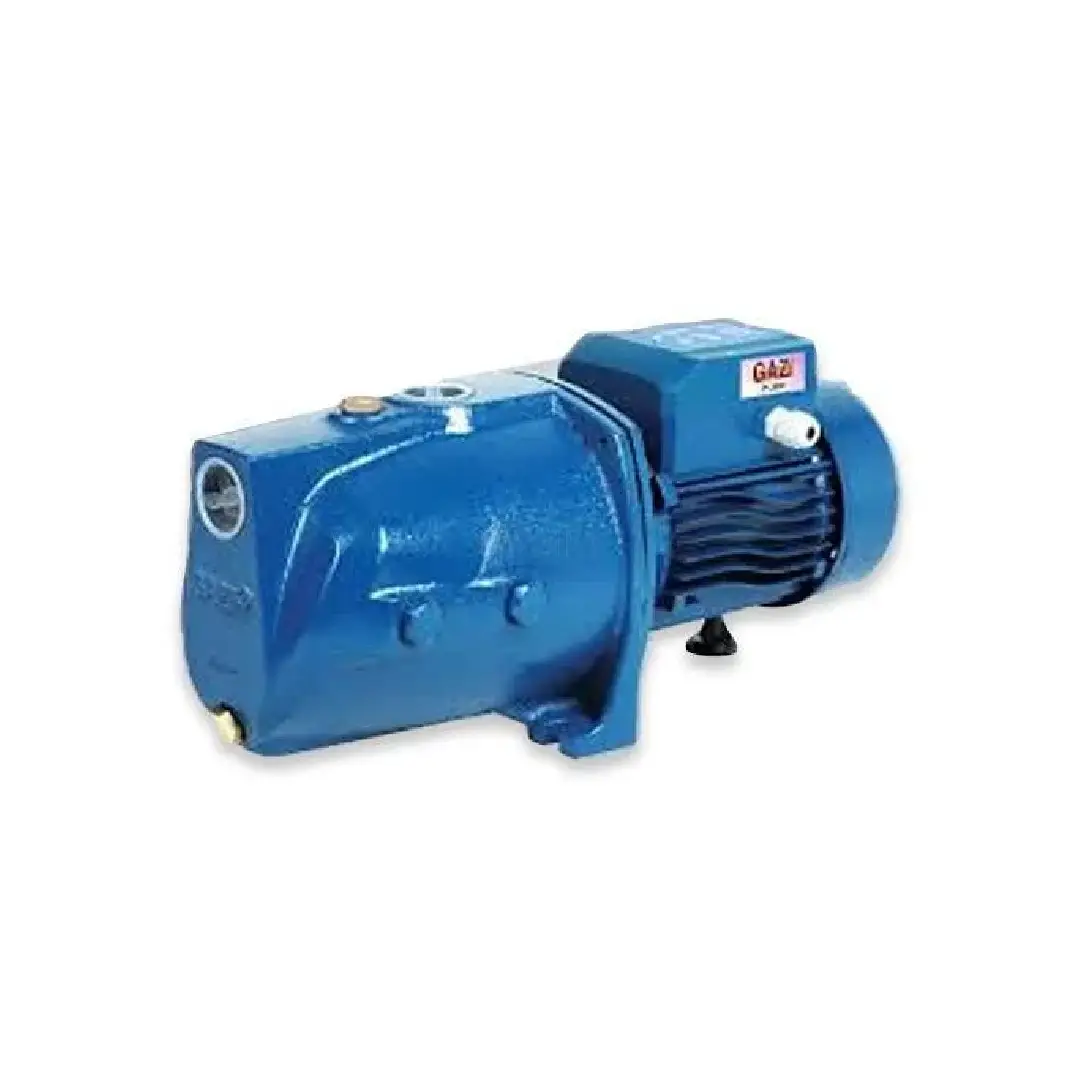

1.5 HP GAZI JET WATER PUMP MOTOR TJSW-3CL

1.5 HP GAZI JET WATER PUMP MOTOR TJSW-3CL

Original price was: 14,500.00৳ .Current price is: 12,905.00৳ .

Specification Details
Brand GAZI
Model TJSW-3CL
Pump Type Jet Water Pump (Self-Priming)
Motor Power 1.5 HP (Horsepower)
Voltage 220V (Single Phase)
Frequency 50 Hz
Motor Winding 100% Copper
Flow Rate (Max) 50 – 70 Liters per Minute (LPM)
Maximum Head (Lift Height) Up to 50 – 55 meters
Maximum Suction Head Up to 9 meters
Inlet/Outlet Size 1.5 inch × 1 inch (Inlet × Outlet)
Pump Body Material Heavy-Duty Cast Iron
Impeller Material Brass or Noryl (Depending on batch)
Diffuser Material Engineering Thermoplastic / Noryl
Shaft Material Stainless Steel



Order on WhatsApp
In Stock
Have a Question? Chat With Us

+8801770975848 Call Now

Description

GAZI 1.5 HP Jet Water Pump – Model: TJSW-3CL

High-Pressure Water Pumping Made Easy — For Homes, Farms, and More

The GAZI TJSW-3CL 1.5 HP Jet Water Pump is a high-performance, self-priming pump designed for efficient water lifting from deep wells, underground tanks, or boreholes. Whether you’re supplying water to a residential building, agricultural land, or a small commercial setup, this powerful pump is engineered to deliver strong suction, consistent pressure, and long-lasting reliability in a wide variety of operating environments.

Powered by a 1.5 horsepower 100% copper-wound motor, the TJSW-3CL is built for energy efficiency and superior performance. Its jet-assisted self-priming mechanism makes it ideal for deep suction needs—where ordinary centrifugal pumps fall short. The robust construction, corrosion-resistant components, and advanced motor insulation make this pump suitable for daily use in rural, urban, and industrial setups.

🔧 Key Features

  • ✅ Powerful 1.5 HP Copper Motor
    Delivers excellent flow and high-pressure output with low energy consumption.

  • ✅ Jet-Assisted Self-Priming System
    Ideal for lifting water from deeper sources compared to centrifugal pumps.

  • ✅ Heavy-Duty Construction
    Cast iron body resists wear, corrosion, and temperature stress.

  • ✅ High Lift Capability
    Pumps water up to 55 meters vertically, making it suitable for tall buildings.

  • ✅ Durable and Efficient Impeller & Diffuser
    Engineered to handle continuous operation with minimal maintenance.

  • ✅ Thermal Overload Protection
    Built-in safety to prevent motor burnout in case of overheating or power fluctuation.

  • ✅ Smooth, Quiet Operation
    Perfect for residential or quiet-zone installations.

🌊 Ideal Applications

  • ✔️ Residential Water Supply (Homes & Apartments)

  • ✔️ Lifting Water to Overhead Tanks

  • ✔️ Garden, Lawn, and Greenhouse Irrigation

  • ✔️ Agricultural Watering from Underground Sources

  • ✔️ Small Business and Commercial Use

  • ✔️ Poultry, Livestock, and Fish Farming

  • ✔️ Water Transfer from Wells, Ponds, or Storage Tanks

🧰 Installation & Usage Tips

  • Use with a foot valve and strainer at the suction inlet.

  • Prime the pump before first use to enable suction.

  • Install on a flat and vibration-free surface to enhance motor life.

  • Regularly inspect the pump for leaks, vibrations, and blockages.

  • Ensure use with a dedicated switch or circuit breaker for safety.

✅ Why Choose GAZI TJSW-3CL?

  • 🇧🇩 Trusted and widely used in households and farms across Bangladesh

  • Delivers consistent water pressure, even from deep sources

  • Energy-efficient operation with a durable copper motor

  • Backed by a 1-year manufacturer warranty

  • Easy availability of spare parts and service support
