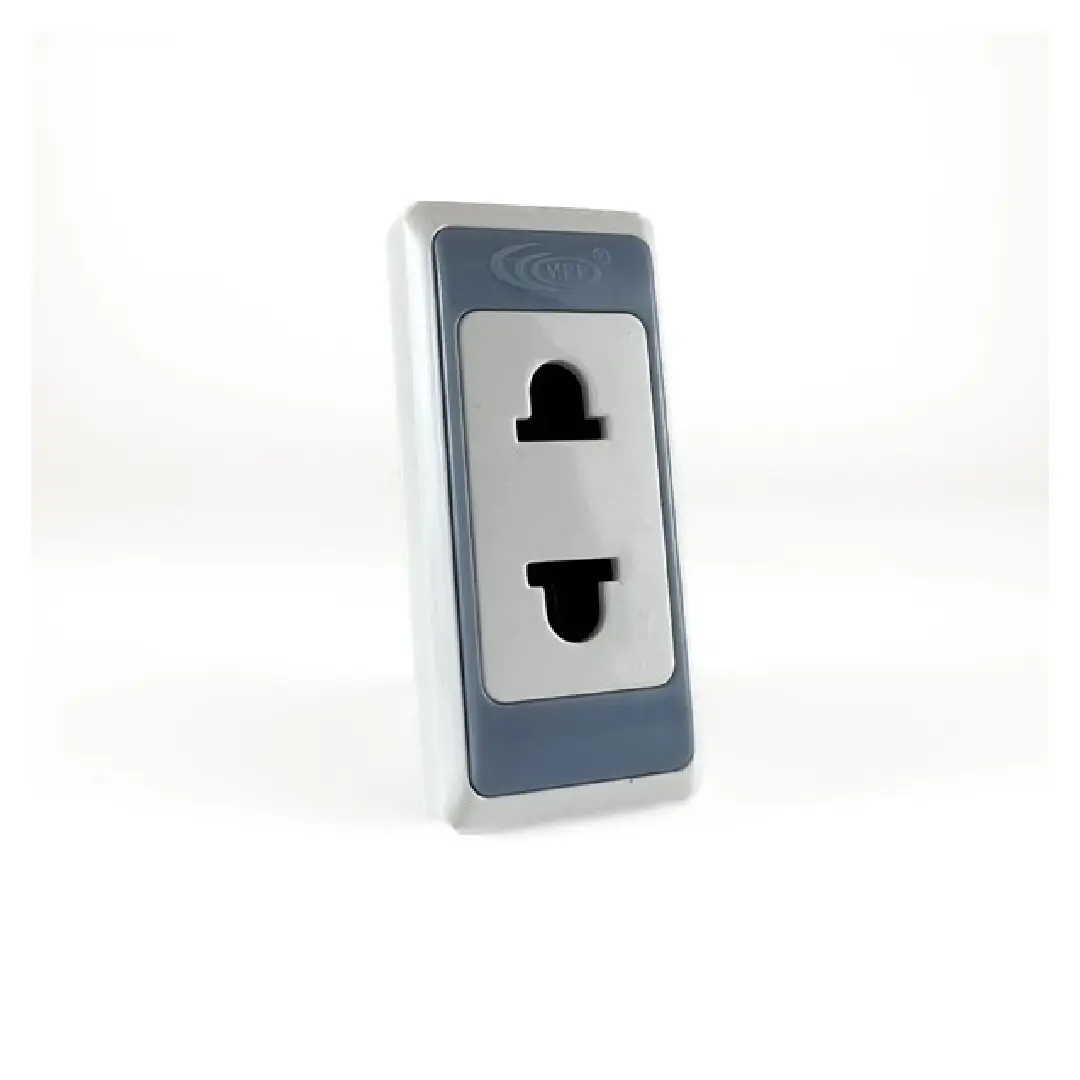

MEP EGM Pati Socket

MEP EGM Pati Socket

Original price was: 26.00৳ .Current price is: 22.00৳ .

Parameter Specification
Product Name EGM Pati Socket
Connector Type Male socket (for Pati plug connection)
Material – Housing Flame-retardant thermoplastic, UL94-V0
Material – Contacts Phosphor bronze with tin or gold plating
Contact Configuration 2, 4, 6, 8, 10, 12 pins (model dependent)
Mounting Type Through-hole PCB mount / Panel mount
Operating Voltage 12V DC or 24V DC (compatible with typical EGM systems)
Current Rating 3A to 5A per contact (dependent on pin count and conductor gauge)
Insulation Resistance ≥ 1000 MΩ @ 500 VDC
Contact Resistance ≤ 20 mΩ per contact
Dielectric Strength 1000 VAC RMS for 1 minute
Insertion Force ≤ 20 N (varies by model)
Durability ≥ 10,000 mating cycles
Operating Temperature -20°C to +70°C
Storage Temperature -40°C to +85°C
Humidity 10% to 90% RH, non-condensing
Ingress Protection IP30 (when installed in cabinet)



Order on WhatsApp
In Stock
Have a Question? Ask a Specialist

+8801719647216 Call Now

Description

🧩 EGM Pati Socket – High-Performance Connector for Electronic Gaming Machines

The EGM Pati Socket is a precision-engineered connector designed specifically for use in Electronic Gaming Machines (EGMs) and casino-grade amusement systems. Built to ensure secure and reliable connections between internal components such as indicators, switches, sensors, and controllers, this socket plays a crucial role in maintaining uninterrupted machine operation and performance in high-traffic environments.

Crafted from high-durability materials, the EGM Pati Socket offers excellent mechanical strength, resistance to wear, and long-term electrical reliability. It is designed to support frequent plug/unplug cycles, making it ideal for applications that require modularity and field servicing.

Whether you’re integrating a new system or replacing worn parts in existing machines, this socket guarantees consistent conductivity, tight contact tolerances, and compatibility with a wide range of EGM accessories. Its compact form factor and standardized pin configuration allow for easy installation and integration with most industry-standard gaming cabinets and circuit boards.

🔧 Key Features:

  • Robust Electrical Performance: Engineered for low-resistance, high-conductivity performance across critical circuits.

  • Durable Construction: High-grade thermoplastic housing with gold- or tin-plated contacts for maximum lifespan.

  • Precision Fit: Ensures secure connection with compatible pati plugs, minimizing the risk of disconnection or data loss.

  • Easy Integration: Standardized dimensions and pinouts make it ideal for retrofit and OEM gaming machine assemblies.

  • Service-Friendly Design: Built for fast replacement and efficient maintenance by gaming technicians.

  • Wide Compatibility: Suitable for slot machines, video lottery terminals (VLTs), Class II and III gaming machines, and other casino devices.

📦 Typical Applications:

  • EGM Indicators (status lights, tower lights)

  • Bill validator and coin acceptor connections

  • Button panel and touchscreen I/O interfaces

  • Internal signal distribution and logic connections

  • Audio, lighting, and door sensor modules

📌 Why Choose Our EGM Pati Socket?

Our Pati Sockets are trusted by EGM manufacturers and casino operators worldwide for their reliability and ease of use. Whether you’re upgrading your gaming floor or performing scheduled maintenance, this socket is a dependable component that helps keep your machines running smoothly and profitably.
