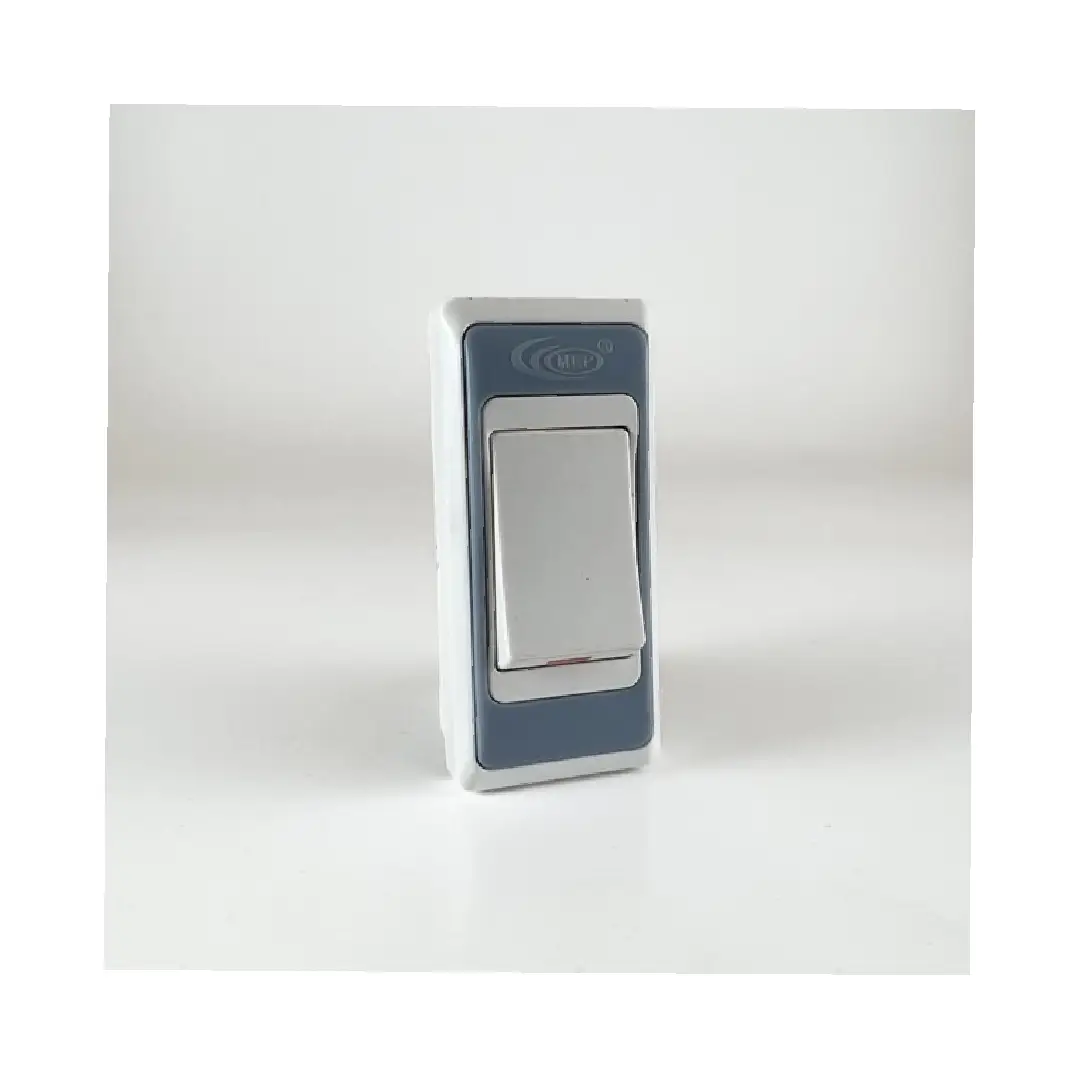

MEP EGM Switch

MEP EGM Switch

Original price was: 25.00৳ .Current price is: 21.00৳ .

Parameter Specification
Switch Type Pushbutton (Momentary or Latching)
Contact Configuration SPST, SPDT, or DPDT
Electrical Rating 12–24 VDC, 1–3 A (resistive load)
LED Voltage (if applicable) 5V / 12V / 24V DC
LED Colors Available Red, Green, Blue, Yellow, White, Bi-color
Contact Material Silver alloy (Gold-plated optional for low-current logic)
Actuator Style Flat, concave, convex, or engraved cap
Terminal Types Quick-connect, solder lug, or screw terminals
Mounting Cutout Sizes Ø16 mm / Ø19 mm / Ø22 mm (model dependent)
Panel Thickness Supported 1 mm to 5 mm
Mechanical Life ≥ 1,000,000 actuations
Electrical Life ≥ 200,000 operations at rated load
Tactile Force 2.5 – 4.0 N (varies by actuator and spring type)
Illumination Type Optional LED ring, dot, or full-cap backlighting
Ingress Protection Rating IP40 (standard), IP65 (sealed models)
Housing Material Flame-retardant thermoplastic (UL94 V-0 rated)
Contact Resistance ≤ 50 mΩ



Order on WhatsApp
In Stock
Have a Question? Ask a Specialist

+8801719647216 Call Now

Description

🕹️ EGM Switch – Precision-Engineered Control Switch for Electronic Gaming Machines

The EGM Switch is a high-quality, industrial-grade component specifically designed for use in Electronic Gaming Machines (EGMs) and casino-grade gaming equipment. Built to withstand the demanding conditions of casino floors — including frequent use, high traffic, and extended operational hours — this switch delivers exceptional responsiveness, reliability, and durability.

Used in critical user interface elements such as player control panels, service access buttons, credit inputs, and jackpot reset keys, the EGM Switch ensures that each interaction is precise and consistent. It’s designed to integrate seamlessly into gaming cabinets of all sizes and styles, meeting the mechanical and electrical standards required for regulated environments.

Whether you’re a manufacturer assembling new EGMs or a technician maintaining existing machines, this switch provides dependable performance that contributes to uninterrupted gameplay and a smooth user experience.

✅ Key Features

  • High-Cycle Durability: Rated for up to 1,000,000 actuations, ideal for high-usage casino environments.

  • Tactile Response: Provides a clean, tactile feel to enhance player interaction and feedback.

  • Compact Design: Slim, low-profile housing for easy integration into various cabinet layouts.

  • Multiple Configurations: Available in momentary or latching types, with a variety of actuator styles.

  • Illuminated Options: LED backlit models available for status indication and enhanced visibility.

  • Easy Installation: Quick-connect terminals or solder lugs for fast, reliable wiring.

🧩 Applications

  • Start, Bet, Max Bet, and Spin buttons on slot machines

  • Service and door access switches

  • Hopper empty or ticket out acknowledgements

  • Test, reset, and diagnostics interface

  • Touch panel mechanical override

  • Jackpot or attendant call trigger

💡 Available Options

  • Colors: Red, green, yellow, blue, white, or custom

  • Lens Types: Flat, concave, convex

  • Illumination: Non-illuminated or LED-backlit

  • Engraving: Custom legends such as “START,” “BET,” or “CASH OUT”

  • Voltage Ratings: 5V, 12V, or 24V DC variants available

🛡️ Built for the Gaming Industry

Our EGM Switches are manufactured to exacting standards with tight quality control, ensuring full compatibility with leading gaming machine brands and systems. Every switch is tested for performance consistency, electrical stability, and mechanical integrity before shipment.
